Make your VPN customers comfortable ⚡️

August 14, 2023 • ☕️ 1 min read

Scenario

📝 When you’ll restrict access One client with another on a VPN dial, the simplest is to follow the dynamic nature of the interfaces, limiting based on the attributes of the VPN interface itself, in this case l2tp-client.

Goal ⚡️

  1. Allow access to certain IP addresses only, specific to the intranet.

    • sample : host-subnet_clientA : 10.200.16.2

  2. Subnet allocation for each client.

    • sample : ip-pool_clientA : 10.10.16.0/24

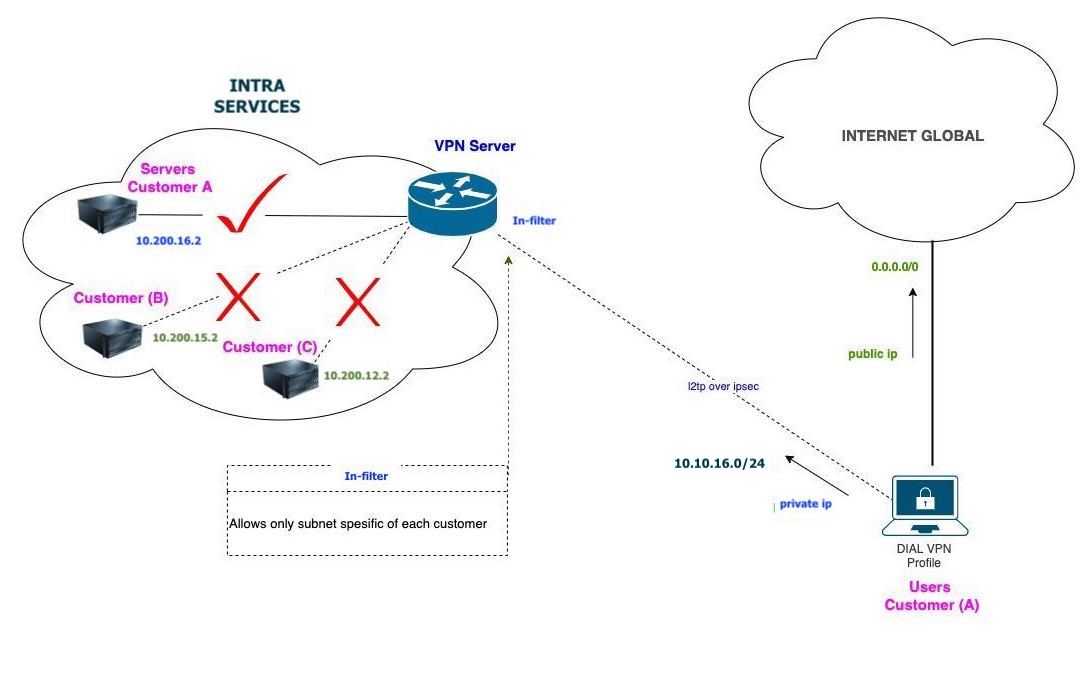

alt text

Configuration

accept established/related and work with new packets, see

/ip firewall filter
add action=accept chain=forward comment=\
    "== defconf: accept established,related, untracked" connection-state=\
    established,related,untracked
add action=drop chain=forward comment="== defconf: drop invalid" \
    connection-state=invalid

jumps to a change called ppp in the forward chain, see

/ip firewall filter
add action=jump chain=forward comment="== customconf: jump for ppp" \
    jump-target=ppp
/ip firewall filter
add action=drop chain=clientA-in comment="== drop | only clientA" dst-address-list=\
    !host-subnet_clientA src-address-list=ip-pool_clientA
add action=drop chain=clientB-in comment="== drop | onlyclientB" dst-address-list=\
    !host-subnet_clientB src-address-list=ip-pool_clientB
add action=drop chain=clientC-in comment="== drop | only clientC" dst-address-list=\
    !host-subnet_clientC src-address-list=ip-pool_clientC

Check dynamic firewall

/ip firewall filter pr det

6  D chain=ppp action=jump jump-target=clientA-in in-interface=<l2tp-clientA001>
